3 Way Valve

Name: 3 Way Valve
Brand: GangYe Group Co., Ltd.

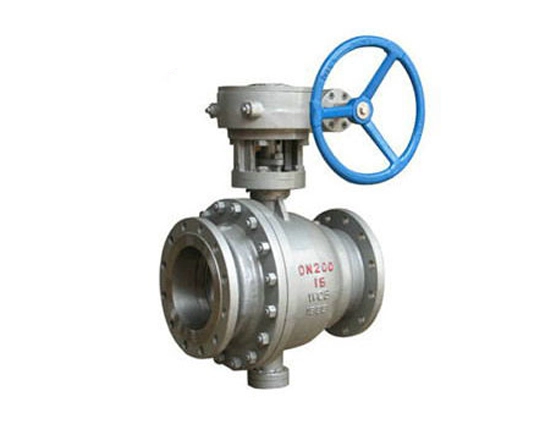

Fixed ball valve is a type of valve that has a fixed ball in the center of the valve body. It is widely used in various industries such as petroleum, chemical, power, and water treatment. The ball in the valve is fixed in position and does not rotate, allowing for precise control of flow and shutoff. The construction of the valve is durable and long-lasting, with a simple design that allows for easy maintenance and repair. Fixed ball valves come in a variety of sizes and materials, including stainless steel, carbon steel, and cast iron, making them versatile for a wide range of applications.

Contact Gangye

3 Way Valve Applications

They are often used in the oil and gas industry, where they are used to regulate the flow of fluids such as crude oil, natural gas, and water. They are also used in chemical processing plants, water treatment facilities, and other industries.Fixed ball valves are known for their durability, ease of operation, and resistance to wear and corrosion. They are designed to provide excellent sealing performance, even in high-pressure and high-temperature applications, making them a popular choice for demanding industrial environments.

3 Way Valve Specification

3 Way Valve

ANSI Class 150Lb

ANSI Class 150Lb
NPS	2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36
(RF)L	178	190	203	229	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524
(BW)L1	216	241	283	305	457	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	1727
H	177	190	210	235	530	625	650	780	790	920	970	1100	1150	1290	1400	1630	1840	2050
(d)	49	62	74	100	150	201	252	303	334	385	436	487	589	633	684	735	779	874
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800	800

ANSI Class 300Lb

ANSI Class 300Lb
NPS	2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32
(RF)L	216	241	283	305	403	502	568	648	762	838	914	991	1143	1245	1346	1397	1524
(BW)L1	216	241	283	305	403	521	559	635	762	838	914	991	1143	1245	1346	1397	1524
H	177	190	210	235	530	625	650	780	790	920	970	1100	1150	1290	1400	1630	1800
(d)	49	62	74	100	150	201	252	303	334	385	436	487	589	633	684	735	779
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800

ANSI Class 600Lb

ANSI Class 600Lb
NPS	2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28
(RF)L	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549
(BW)L1	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562
H	180	193	215	241	540	635	665	790	810	925	985	1130	1185	1335	1450
(d)	49	62	74	100	150	201	252	303	334	385	436	487	589	633	684
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800

ANSI Class 900Lb

ANSI Class 900Lb
NPS	2	21/2	3	4	6	8	10	12	14	16	18	20	24
(RF)L	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
(BW)L1	371	422	384	460	613	740	641	968	1038	1140	1232	1334	1568
H	219	235	260	390	655	770	805	965	980	1145	1195	1360	1425
(d)	49	62	74	100	150	201	252	303	322	373	423	471	570
W	500	500	500	600	600	600	600	800	800	800	800	800	800

ANSI Class 1500Lb

ANSI Class 1500Lb
NPS	2	21/2	3	4	6	8	10	12	14	16
(RF/BW)L/L2	368	419	470	546	705	832	991	1130	1257	1384
(RTJ)L2	371	422	473	549	711	841	1000	1046	1276	1407
H	285	306	338	506	852	1000	1045	1255	1270	1485
(d)	49	62	74	100	144	192	239	287	315	360
W	500	500	600	600	600	800	800	800	800	800

ANSI Class 2500Lb

ANSI Class 2500Lb
NPS	2	21/2	3	4	6	8	10	12
(RF/BW)L/L2	451	508	578	673	914	1022	1270	1422
(RTJ)L2	454	540	584	683	927	1038	1292	1445
H	304	327	362	540	811	1070	1120	1345
(d)	42	52	62	87	131	179	223	265
W	500	600	600	600	800	800	800	800
