Electric Actuated Gate Valve

Name: Electric Actuated Gate Valve
Brand: GangYe Group Co., Ltd.

A motor actuated gate valve, also known as electric actuated gate valve, is a valve used to control the flow of pipelines, and it is suitable for media adjustment when building fluid delivery systems in large, medium and small pipelines. It has the characteristics of high internal assembly sealing performance when the valve is opened or closed, and can be used to switch the flow of pipeline media (such as air, water, oil, steam, etc.). Motor operated gate valve is widely used in industries such as tap water and thermal power generation.

As a leading electric actuated gate valve manufacturer, Gangye is committed to delivering cutting-edge valve solutions that meet the highest standards of durability, safety, and efficiency.

Contact Gangye

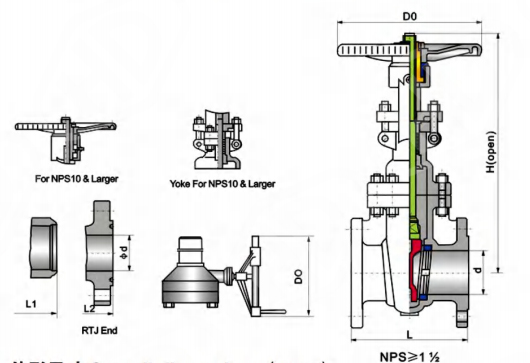

Wholesale Electric Actuated Gate Valve Specification

Electric Actuated Gate Valve

ANSI Class 150Lb

ANSI Class 150Lb
NPS	2	2_1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42	48
(RF)L	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	711	711	813	813	1067
(BW)L1	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	1067	1143	1371
(RTJ)L2	190	203	216	241	279	305	343	368	394	419	445	470	521	-	-	622	-	724	-	-	-
(OPEN)H	386	434	480	584	765	956	1149	1350	1508	1703	1892	2119	2500	2806	2960	3150	3280	3720	3302	3479	3962
d	50	63	76	100	150	200	250	300	336	387	438	488	590	641	692	743	781	876	-	-	-
Do	200	200	250	300	300	350	400	450	500	550	600	640	750	720	800	800	950	1000	1020	1020	1020

ANSI Class 300Lb

ANSI Class 300Lb
NPS	2	2_1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42	48
(RF/BW)L1/L2	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1727	1955	2032	2286
(RTJ)L2	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1270	1372	1422	1553	1756	-	-	-
(OPEN)H	410	453	509	612	805	1000	1210	1415	1580	1725	1960	2195	2590	2975	3100	3200	3300	3860	3713	3916	4501
d	50	63	76	100	150	200	250	300	336	387	431	482	584	635	686	737	781	876	-	-	-
Do	200	200	250	300	350	400	450	500	550	550	600	640	720	720	800	800	950	1000	720	720	720

ANSI Class 600Lb

ANSI Class 600Lb
NPS	2	2_1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42	48
(RF/BW)L1/L2	192	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	2083	2149	2260	2667
(RTJ)L2	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	1664	1794	2099	-	-	-
(OPEN)H	418	476	518	646	840	1025	1230	1450	1575	1795	1930	2210	2580	2665	2780	2895	3150	3560	3600	3950	4600
d	50	63	76	100	150	199	199	298	326	374	419	463	558	603	648	695	781	876	-	-	-
Do	200	250	250	300	450	500	500	600	600	600	640	640	720	720	800	800	950	1000	720	720	720

China Motor Operated Gate Valve Features

Automation: Operated by electric motors, these valves can be controlled remotely, offering precise regulation and the convenience of automation in complex systems.

Durability: Made from high-grade materials such as stainless steel or carbon steel, electric actuated gate valves are designed to withstand high pressure, temperature, and corrosive environments.

Tight Sealing: Provides excellent sealing performance, minimizing leaks when fully closed, thanks to the gate's contact with the valve seats.

Bi-Directional Flow: Capable of regulating flow in both directions, which adds flexibility to the design of piping systems.

Low Fluid Resistance: The internal design of the gate valve allows for minimal resistance when fully open, reducing energy consumption in the system.
